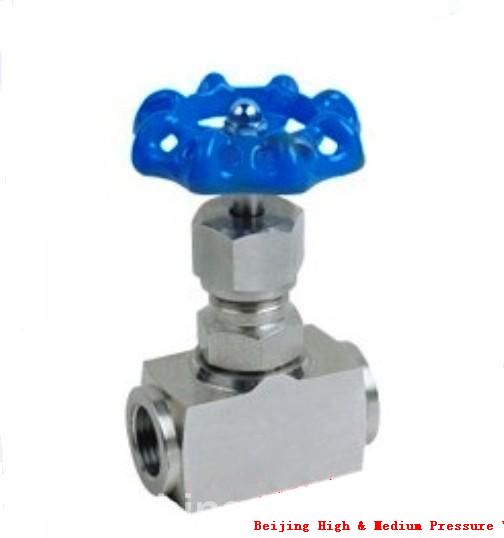

Product Name:Internal thread needle valve for handwheel
Product Classification:Needle valves
Product Introduction: Internal thread needle valve for handwheel
Description Parameters Size Chart Application

Name:Internal thread needle valve for handwheel

Manufacture Standard:GB/T12224-2005  JB/T7747-1995

Connect type:(NPT,G,Rc,Rp…)

structural feature :Conical Sealing
Valve test Standard:  JB/T9092-1999

PN≤10000Psi

Working temperature:-29℃~+538℃

Working Medium:Water,Oil,Ga

序号

NO.

零件名称

Part name

材质

Material

1

阀体 Body

20# A105 SS304 SS304L SS316 SS316L

2

阀盖垫片 Bonnet Gasket

紫铜(Red copper) PTFE

3

阀盖Bonnet

20# A105 SS304 SS304L SS316 SS316L

4

填料垫 Packing Seat

PTFE 柔性石墨(Expanded Graphite)

金属盘根(Matel and Graphite)

5

填料 Packing

PTFE 柔性石墨(Expanded Graphite)

6

填料压盖 Packing Gland

20# A105 SS304 SS304L SS316 SS316L

7

阀杆 Stem

20# A105 SS304 SS304L SS316 SS316L

8

手轮 Handle

20# A105 SS304 SS304L SS316 SS316L

9

带帽螺母Hooded Nut

20# A105 SS304 SS304L SS316 SS316L





ITEM NO.

公称通径 DN

Nominal bore

M

H

L

D0

J13W-JH-d-1

DN6

G1/4

85

58

60

J13W-JH-d-2

<, SPAN style="FONT-STYLE: normal; FONT-FAMILY: '宋体'; BACKGROUND: rgb(255,255,255); COLOR: rgb(51,51,51); FONT-SIZE: 12pt; FONT-WEIGHT: normal; mso-spacerun: 'yes'; mso-shading: rgb(255,255,255)">DN10

G3/8

87

58

60

J13W-JH-d-3

DN15

G1/2

87

60

65(70)

J13W-JH-d-4

DN20

G3/4

100

70

70(80)

J13W-JH-d-5

DN25

ZG1

110

78

80(100)

J13W-JH-d-6

DN32

G1-1/4

130

102

100(110

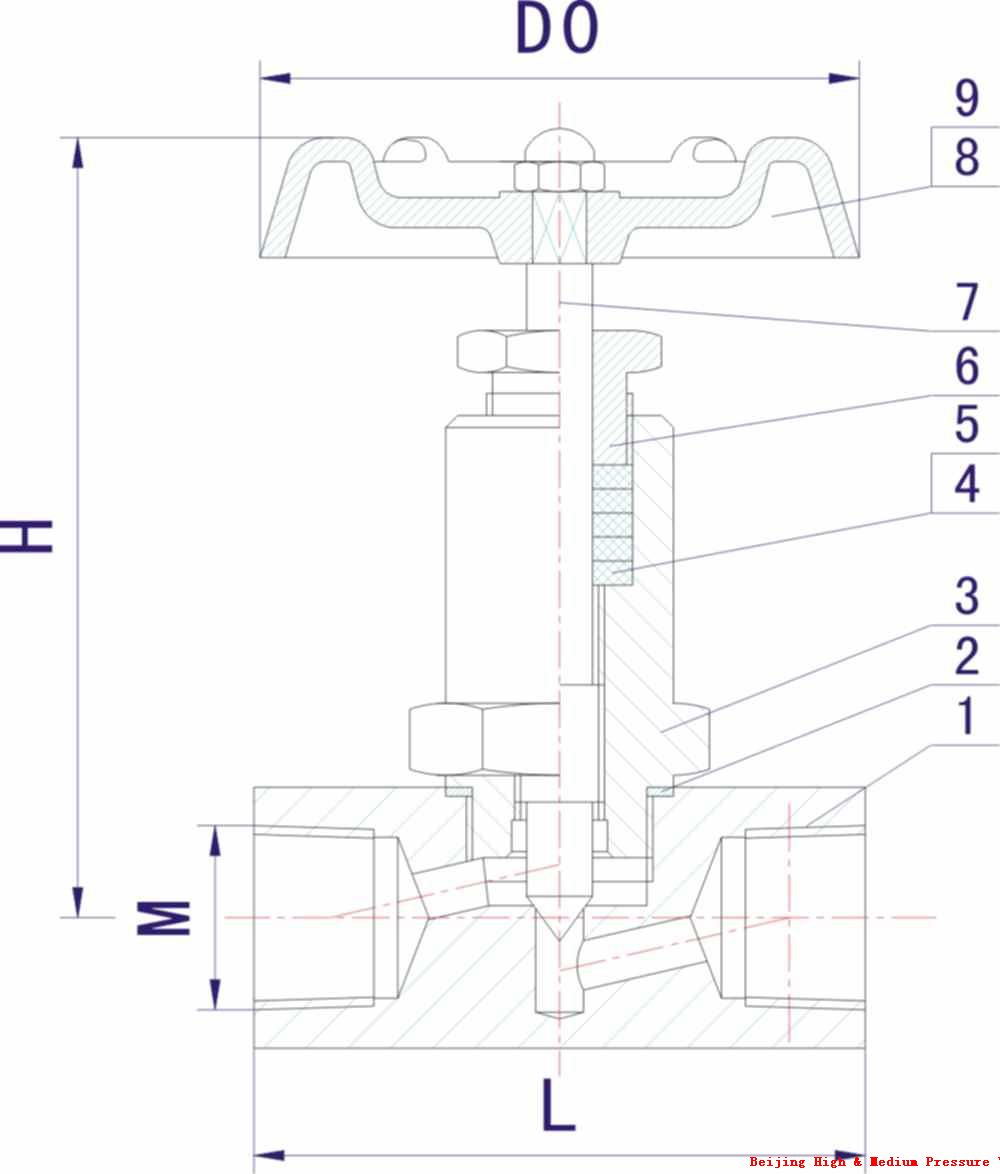

产品外形及结构尺寸示意图
