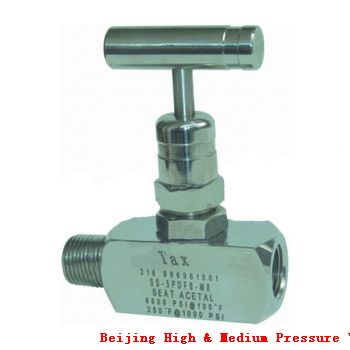

Product Name：Internal and external needle valve
Product Classification：Needle valves
Product Introduction： Name:Internal and external needle valve
Description Parameters Size Chart Application

Manufacture Standard:ASME B16.34-2004

Connect Type:(NPT,G,Rc,Rp…)

Structure Characteristics:taper thread seal

Valve Test:API 598-1996

PN≤10000Psi

Working temperature:-29℃～+538℃

Working medium:Water ,oil,gas ec

货号

ITEM NO.

公称通径 DN

Nominal bore

Td

H

L

L1

N

J21W-HB-1

DN6

NPT1/4

75

58

75

60

J21W-HB-2

NPT1/2

80

62

66

60

J21W-HB-3

NPT3/4

80

57

-

60

J21W-HB-4

DN10

NPT3/8

75

58

78

60

J21W-HB-5

DN15

NPT1/2

77

68

86

60

序号

NO.

零件名称

Part name

材质

Material

1

阀体 Body

20# A105 SS304 SS304L SS316 SS316L

2

阀盖垫片 Bonnet Gasket

紫铜(Red copper) PTFE

3

阀盖Bonnet

20# A105 SS304 SS304L SS316 SS316L

4

填料垫 Packing Seat

PTFE 柔性石墨(Expanded Graphite)

金属盘根(Matel and Graphite)

5

填料 Packing

PTFE 柔性石墨(Expanded Graphite)

6

填料压盖 Packing Gland

20# A105 SS304 SS304L SS316 SS316L

7

阀杆 Stem

20# A105 SS304 SS304L SS316 SS316L

8

手柄 Handle

20# A105 SS304 SS304L SS316 SS316L

9

内六角螺钉 Hexagon Screw

20# A105 SS304 SS304L SS316 SS316L

, rder-left-alt: 0.7500pt outset rgb(0,0,0); mso-border-right-alt: 0.7500pt outset rgb(0,0,0); mso-border-top-alt: 0.7500pt outset rgb(0,0,0); mso-border-bottom-alt: 0.7500pt outset rgb(0,0,0)" vAlign=center width=71>

2

阀盖垫片 Bonnet Gasket

紫铜(Red copper) PTFE

3

阀盖Bonnet

20# A105 SS304 SS304L SS316 SS316L

4

填料垫 Packing Seat

PTFE 柔性石墨(Expanded Graphite)

金属盘根(Matel and Graphite)

5

填料 Packing

PTFE 柔性石墨(Expanded Graphite)

6

填料压盖 Packing Gland

20# A105 SS304 SS304L SS316 SS316L

7

阀杆 Stem

20# A105 SS304 SS304L SS316 SS316L

8

手柄 Handle

20# A105 SS304 SS304L SS316 SS316L

9

内六角螺钉 Hexagon Screw

20# A105 SS304 SS304L SS316 SS316L

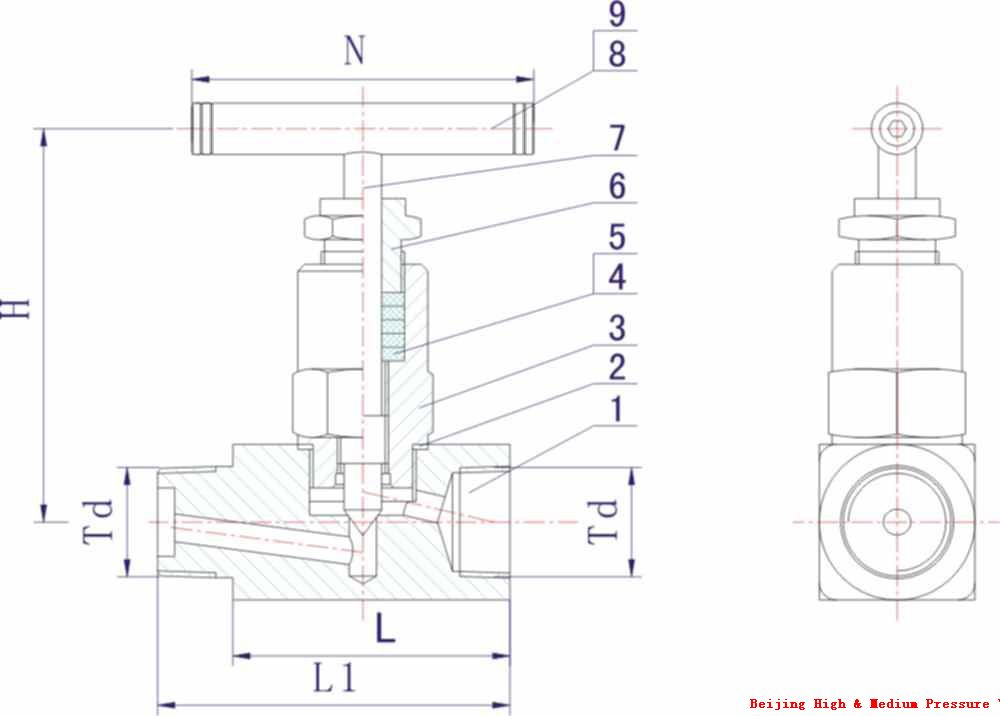

产品外形及结构尺寸示意图
