Product Name：Pneumatic flanged ball valves
Product Classification：Ball valves
Product Introduction： Pneumatic ball valve is mainly used for cut off or through the medium pipeline, also can be used for the adjustment of the fluid and control.
Description Parameters Size Chart Application

1、Design and Manufacturing ：GB12237-89、API608、API 6D、JPI 7S-48、BS5351、DIN3357。
2、flange dimensions ：JB/T74～90（JB74～90）、GB912～9131、HGJ44～76、SH3406、ANSI B16.5、JIS B2212～2214、NF E29-211、DIN2543。
3、structure length：GB12221-89、ANSI B16.10、JIS B2002、NF E29-305、DIN3202。

Body

WCB

ZG1Cr18Ni9Ti

ZG1Cr18Ni12Mo2Ti

Ball

2Cr13

1Cr18Ni9Ti

 1Cr18Ni12MoTi

Sealing ring

PPL

PPL

metallic seal

Packing

PTFE

soft graphite

Stem

2Cr13

1Cr18Ni9Ti

 1Cr18Ni12MoTi

Applicable Medium

steam, water, oil nitric acid kind of acetic acid

Applicable Temperature

-28℃ - 300℃

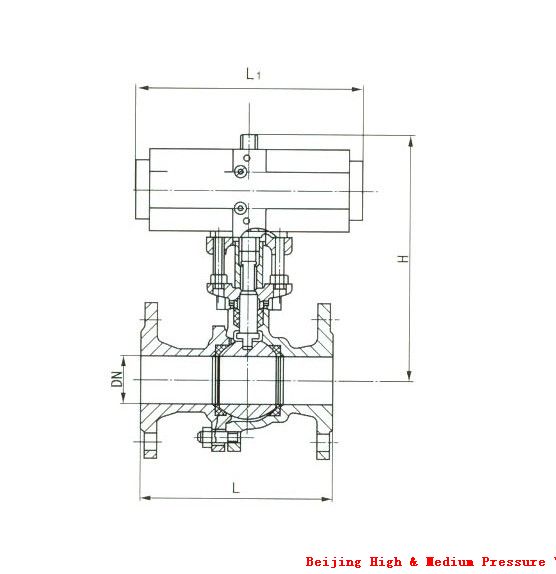

产品外形及结构尺寸示意图

1. Should stay the valve handle rotating position

2. Not to be used as throttling.

3. The belt transmission's ball valve should be installed upright.

4. Please use the product according to the right, to ensure that the service life of the product, such as unusual situation, that is, please call national unified service hotline 400-666-1929, we will provide you with the high quality post-sale service, give you a satisfactory reply.
