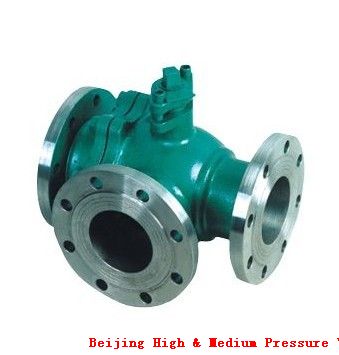

Product Name:3 ways ball valve
Product Classification:Ball valves
Product Introduction: Used in water,chemical,oil ,gas,etc.
Description Parameters Size Chart Application

Tee ball valve for the L-shaped and T-shaped,L-shaped(Q44F)ball valve for media flow switch can connect two channels perpendicular to each other,T-shaped(Q45F)ball valve for media diversion.The merging flow switch.T-links can be interconnected to three channels or two channels connected to them.Commonly used two-way ball valve seat structure according to user requirements can be a four-seat structure.

Test pressure(Mpa)

Nominal pressure(Mpa)

1.6

2.5

4.0

CL150

JIS10K

Strength test

2.4

3.8

6.0

3.2

2.4

Sealing test

1.8

2.8

4.0

2.2

1.5

Air seal test

0.5~0.7

Operating temperature

PTFE≤150℃ PTL≤300℃

Applicable medium

C:WaterOilSteam
P:Nitrose R:Aceticacid

Nominal pressure

Nominal bore

L

L1

H

W

Weight(Kg)

(Mpa)

mm

in

mm

mm

mm

mm

1.6

2.5

4.0

CL 150

JIS 10K

1.6
2.5
4.0
CL 150
JIS 10K

15

1/2

130

65

62

100

2.5

3.0

3.5

2.5

2.5

20

3/4

150

75

68

160

3.0

3.5

4.5

3.0

3.6

25

1

160

80

75

160

4.8

5.0

6

5.0

5.0

32

11/4

180

90

85

200

6.5

7

8.5

7

7

40

11/2

200

100

95

200

8.5

9

10.5

9

9

50

2

230

115

110

250

11

12

14

12

11

65

21/2

290

145

130

300

15

17

20

16

16

80

3

310

155

155

400

21

22

32

21

22

100

4

350

175

180

500

33

36

50

36

36

125

5

400

200

250

600

65

70

80

68

70

150

6

480

240

275

800

103

110

120

105

105

200

8

580

290

325

1000

152

168

180

160

160

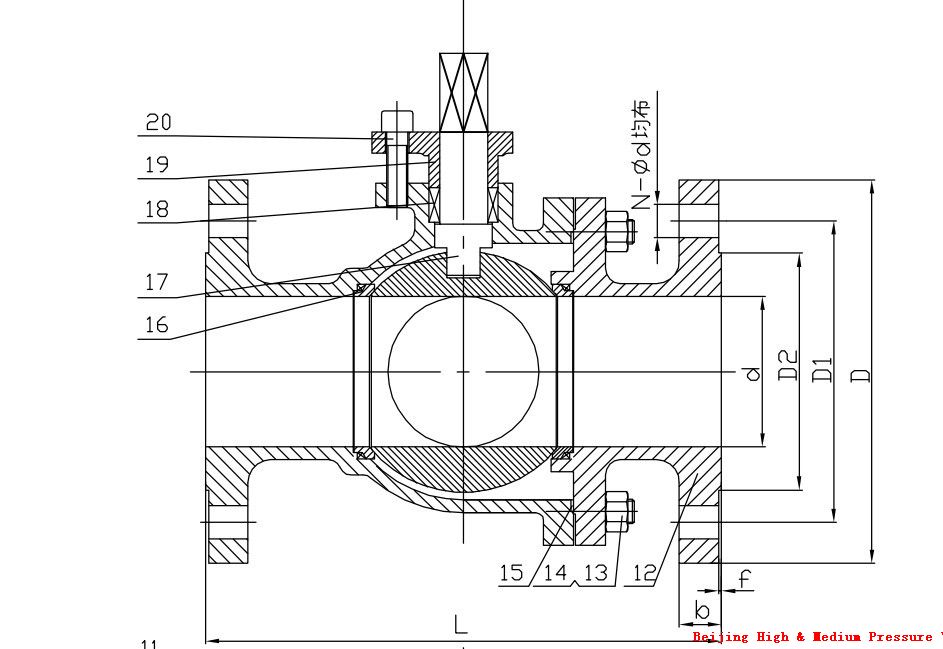

产品外形及结构尺寸示意图

1. Should stay the valve handle rotating position

2. Not to be used as throttling.

3. The belt transmission's ball valve should be installed upright.

4. Please use the product according to the right, to ensure that the service life of the product, such as unusual situation, that is, please call national unified service hotline 400-666-1929, we will provide you with the high quality post-sale service, give you a satisfactory reply.
