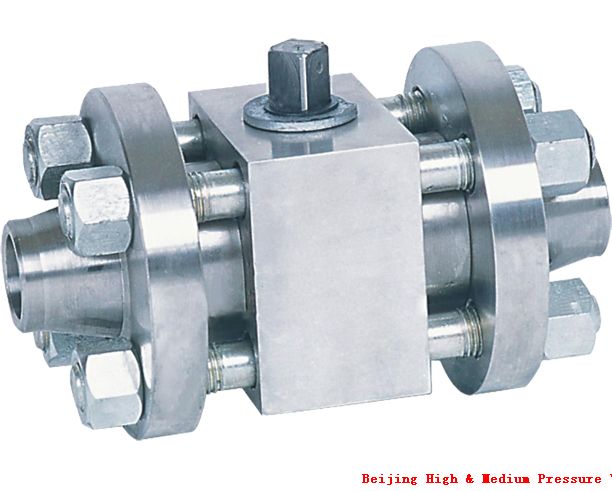

Product Name：High-pressure forging steel ball valve
Product Classification：Ball valves
Product Introduction： Nominal pressure: 6.4-32 Mpa Applicable temperature range:-20-360 ℃ Applicable medium: water, oil, gas and some corrosive liquid Welding type: butt weld, socket weld
Description Parameters Size Chart Application

1. In all kinds of valve, the flow of ball valve least resistance, the diameter ball valve opened, the sphere channel,

valve body channel and the connection pipe diameter and into a equal diameter, almost no loss of medium run.

2. Rotating 90 ° all ball valves can be fully open, opening and closing fast. And the same specifications of the gate valves, globe valves,

ball valve is small volume, light weight, easy to installation of pipes.

              Name of parts

Material

Body/Bonnet

45

Ball/Stem

2Cr13

Stud bolt

35CrMo

Seat

2Cr13

Sealing

Nylon1010

Prime outform dimensions:
Pressure

Nominal bore
DN（mm）

Size（mm）

Weight（Kg）

L

L1

H

W

D

D1

16.0

32.0

PN16.0～32.0Mpa

10

150

60

58

220

90

18

4

4.5

15

170

70

62

220

100

23

4.5

5

20

190

80

75

250

110

29

6.5

7

25

205

95

80

250

115

36

8

9

32

230

110

96

300

150

43

16

19

40

260

120

110

400

170

49

22.5

24

50

330

140

128

400

200

61

35

38

65

360

150

180

500

225

80

48

52

80

380

160

200

600

270

105

67

72

100

430

188

245

800

320

118

116

124

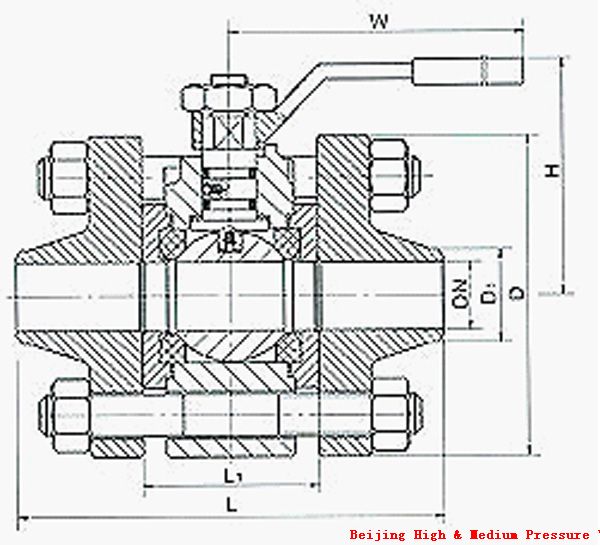

产品外形及结构尺寸示意图

1. Should stay the valve handle rotating position

2. Not to be used as throttling.

3. The belt transmission's ball valve should be installed upright.

4. Please use the product according to the right, to ensure that the service life of the product, such as unusual situation, that is, please call national unified service hotline 400-666-1929, we will provide you with the high quality post-sale service, give you a satisfactory reply.
