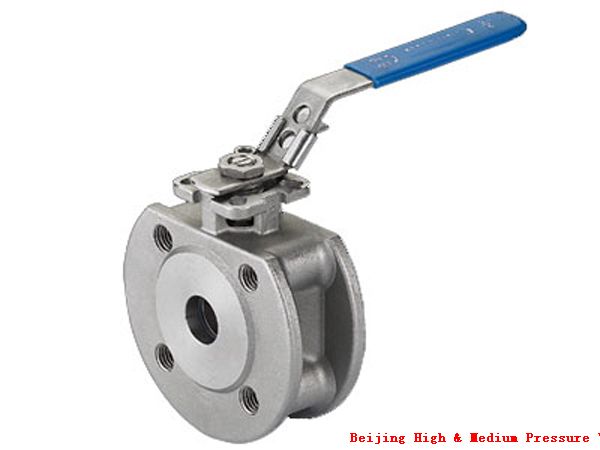

Product Name：Wafer ball valve
Product Classification：Ball valves
Product Introduction： To clip ball valve is for use in PN1.0 ~ PN2.5 MPa, working temperature-29-120 ℃ of all kinds of piping, used to cut through the medium or pipeline
Description Parameters Size Chart Application

This product with reference to the Italian product characteristics, compared with common ball valve,

the structure is short length, light weight, easy installation,

save material and other significant advantages. Seat is elastic sealing structure, reliable sealing, open easily.

With refractory structure, in case of a fire, still can be reliable operation and good sealing.

Set the 90 ° switch with hole orientation patch, may, according to needs, locking, prevent mistakes operation.

Size

1/2''

3/4''

1''

1 1/4''

1 1/2''

d

15

20

25

29

38

L

32

38.5

45

55

62

D

95

105

115

135

145

D1

65

75

85

100

110

D2

45

55

65

78

85

H

62

70

79

86

92

E

110

125

135

150

150

b

14

14

16

16

18

n-φ

4-14

4-14

4-14

4-18

4-18

f

2

2

2

3

3

NO.

Name

Material

1

Body

SS316

2

Seat

SS316

3

Sealing ring

PTFE

4

Ball

SS316

5

Stem

SS316

6

Gasket

PTFE

7

Packing

PTFE

8

Packing gland circle

SS316

9

Jam nut

SS316

10

Handle

A356

11

location-plate

SS316

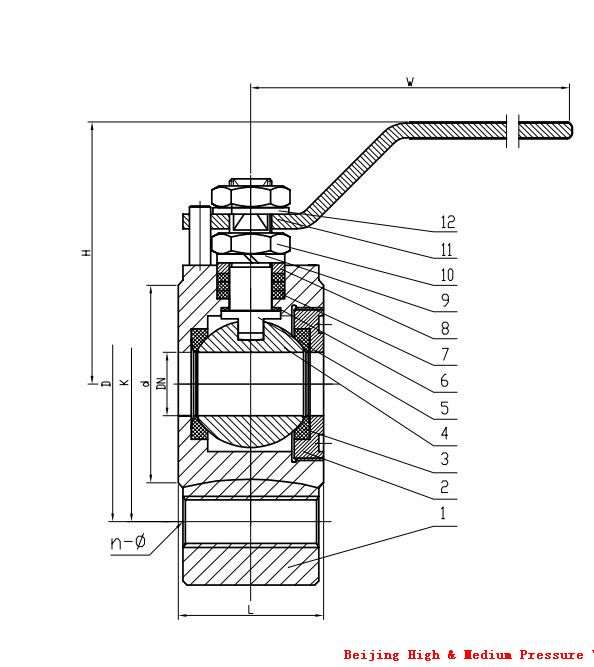

产品外形及结构尺寸示意图

1. Should stay the valve handle rotating position

2. Not to be used as throttling.

3. The belt transmission's ball valve should be installed upright.

4. Please use the product according to the right, to ensure that the service life of the product, such as unusual situation, that is, please call national unified service hotline 400-666-1929, we will provide you with the high quality post-sale service, give you a satisfactory reply.
