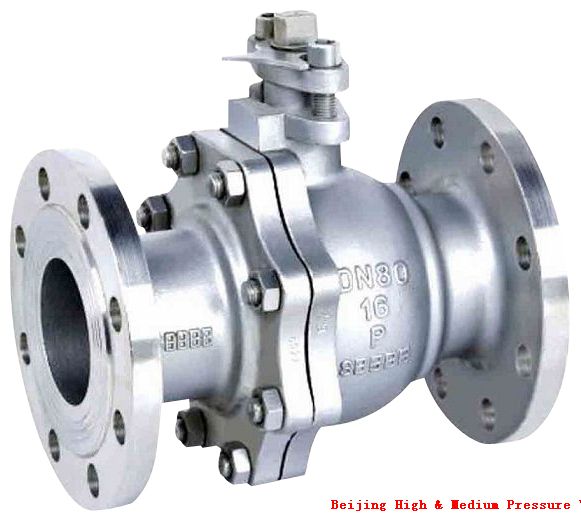

Product Name：Floating ball valve
Product Classification：Ball valves
Product Introduction： Q41F type PN16 ~ PN63 float soft sealing ball valves used in Class150 ~ Class1500, PN16 ~ PN63, JIS10K ~ JIS20K various pipelines, used to cut off or through the medium pipeline.
Description Parameters Size Chart Application

1, In all sorts of valves, globe valves flow the least resistance, the diameter ball valve opened, the sphere channel,

valve body channel and the connection pipe diameter and into a equal diameter, almost no loss of medium run.

 2, Ball valve can be fully open all spin 90 °, opening and closing fast. And the same specifications of the gate valves,

globe valves, ball valve is small volume, light weight, easy to installation of pipes.

Model

Q41F-16C

Q41F-25C

Q41F-16P

Q41F-25P

operating pressure

（MPa)

1.6~2.5

Applicable Temperature （℃）

≤180

Applicable Medium

Water, steam, oil products

Weak corrosive medium

Material

Body/Bonnet

Carbon steel

Nickel chrome is stainless steel

Ball/Stem

Chromium/chrome nickel/chrome nickel molybdenum is stainless steel

Nickel chrome is stainless steel

Sealing ring

Flexible graphite gaskets/316+Flexible graphite gaskets

Packing

PTFE

Nominal bore

L

H

W

Weight（Kg）

15

130

59

130

2.5

20

140

63

130

3

25

150

75

160

5

32

165

85

180

6

40

180

95

230

7

50

200

107

230

10

65

220

142

400

15

80

250

152

400

19

100

280

178

650

33

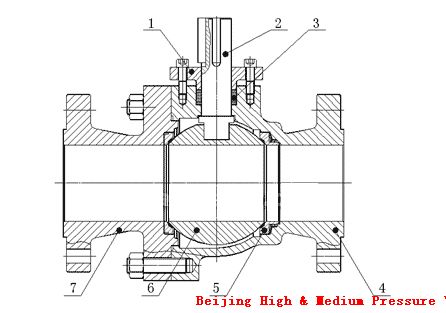

产品外形及结构尺寸示意图

1. Should stay the valve handle rotating position

2. Not to be used as throttling.

3. The belt transmission's ball valve should be installed upright.

 4. Please use the product according to the right, to ensure that the service life of the product, such as unusual situation, that is, please call national unified service hotline 400-666-1929, we will provide you with the high quality post-sale service, give you a satisfactory reply.
