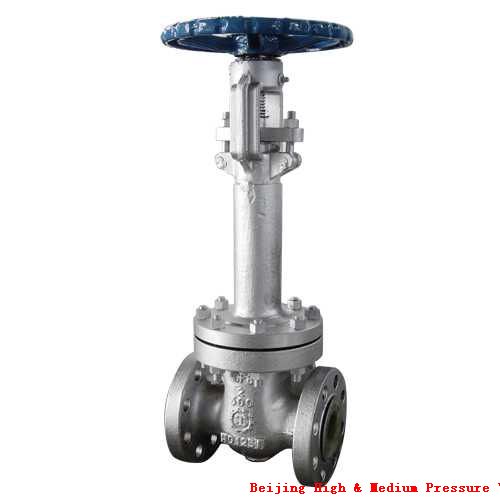

| Product Name：Z40Y Low-temperature gate valve |
| Product Classification：Gate valves |
| Product Introduction： |
Primary purpose of high and medium pressure flange gate valve connections for nominal pressure PN1.6 ~ 16.0MPa, working temperature ≤ -29 ℃ ~ 550 ℃ oil, chemical, water, fire station of the pipeline system, or turn off line media. Applicable medium: water, oil, steam, and acid, alkali, ammonia, urea, sulfur and natural gas
|
|
| Description |
Parameters |
Size Chart |
Application |
|
| Standard and Standard : |
| 1.the design,manufacture according to GB/T12234-1989 |
| 2.The structure according to the length of GB/T12221-2005\ |
| 3.Connection flange according to JB/T79-1994 |
| 4.Valve inspection and testing by JB/T9092-1999 |
| |
| Feature: |
| 1.nominal pressure 1.6-2.5MPa |
| 2.sutiable temperature:LC3>-101℃,LCB>-46℃,SS304>-196℃ |
| 3.nominal diameter:20-400mm |
4.sutiable media:Methane, natural gas liquids, carbon dioxide, oxygen, nitrogen and other cryogenic media
|
| | |
| main meterials |
| materials |
body,gate Disc,Bonnet ,Yoke |
LC3.LCB.LCC,SS304 |
| Packing |
Asbestos rope soaked PTFE |
| Handwheel |
QT450-10 |
| Stem nut |
ZCuA110Fe3 |
| Stem |
SS304 |
| Gasket |
Low temperature asbestos |
| |
|

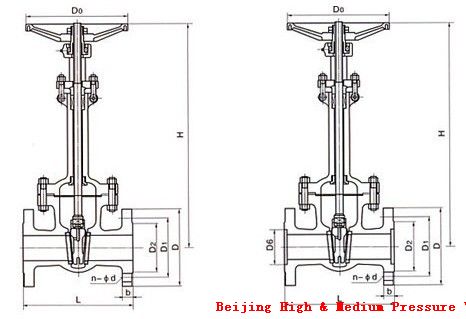

产品外形及结构尺寸示意图
 |
Schematic diagram of the product shape and structure size
1, hand wheels, handles and drive mechanism for lifting are not allowed to use, and non-collision.
2, Gate Valve should be installed vertically (ie, stem in a vertical position, the hand wheel at the top).
3, the valve with a bypass valve opens the bypass valve in the open should be preceded by (in order to balance the import and export of pressure and reduce opening force).
4, with the valve drive mechanism, according to the provisions of the product installation instructions.
5, if the valve often used switches, lubrication at least once a month
|
|
