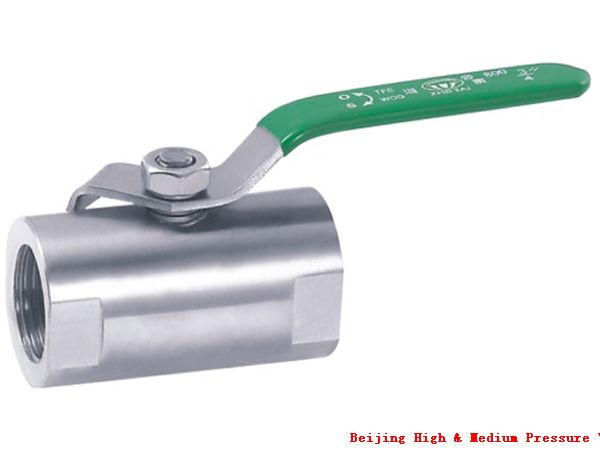

Product Name:One piece body ball valve
Product Classification:Ball valves
Product Introduction: Q11F type internal threads ball valve applicable to PN1.6 MPa, working temperature-29 ~ 120 ℃ (sealing ring for ptfe) of all kinds of piping.
Description Parameters Size Chart Application

1) fluid resistance small, the resistance coefficient and the length of the pipeline section with equal.

2) simple structure, small volume, light weight.

3) close reliable, at present the ball valve seal face materials widely used plastic, good sealing, vacuum system has also in wide use.

4) convenient operation, open and close rapidly, from full open to all as long as 90 ° rotation, facilitate remote control.

5) convenient maintenance, ball valve structure simple, sealing ring is usually activities, remove the change are more convenient.

6) in the fully open or fully closed, the ball and seat sealing surface and medium isolation, media through the, won't cause of valve sealing surface erosion.

7) wide range, size from a few millimeters to, to several meters from the high vacuum and high pressure can apply.

Nominal bore

dimensions

mm)

weight

g

d

L

W

H

6

8

60

110

56

320

10

18

60

110

58

320

15

10.5

60

110

58

350

20

13

67.5

110

62

430

25

17

73

110

68

570

32

22

90

150

75

1000

40

25

97.5

150

83

1550

50

32

112

150

90

2170

65

40

132

180

95

3625

80

50

156

220

100

5800

100

65

196

250

115

7200

Parts material

NO.

Name of part

Material

1

Sealing ring

PTFE

2

ball

SS316

3

Sealing washer

PTFE

4

Bonnet

S316

5

Body

SSCF8M

6

Stem

SS316

7

Packing

PTFE

8

Gland nut

SS304

9

Gasket

SS304

10

Stem nut

SS304

11

Handle sleeve

PVC

12

Handle

SS304

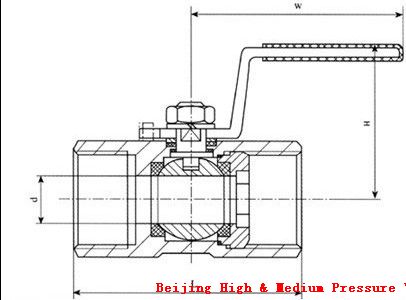

产品外形及结构尺寸示意图

1).Should stay the valve handle rotating position

2).Not to be used as throttling.

3).The belt transmission's ball valve should be installed upright.

4).Please use the product according to the right, to ensure that the service life of the product, such as unusual situation, that is, please call national unified service hotline 400-666-1929, we will provide you with the high quality post-sale service, give you a satisfactory reply.
